Low Impact, Extreme Abrasion Protection

For environments dominated by severe sliding and abrasion, with minimal impact against equipment surfaces.

Extreme abrasion application with TuffStudds

Purpose-built abrasion series

The abrasion series is engineered for extreme sliding and abrasive wear where impact is a minor concern. Its harder alloy provides maximum wear resistance.

Abrasion alloy

High carbon chromium carbide in an iron alloy matrix for extreme abrasion.

55–60 Hardness Rockwell C (HRC)

Harder, maximum resistance where abrasion is the primary challenge.

1–3% malleability

Lower compressive tolerance, best suited to low-impact environments.

Explore abrasion series lineup

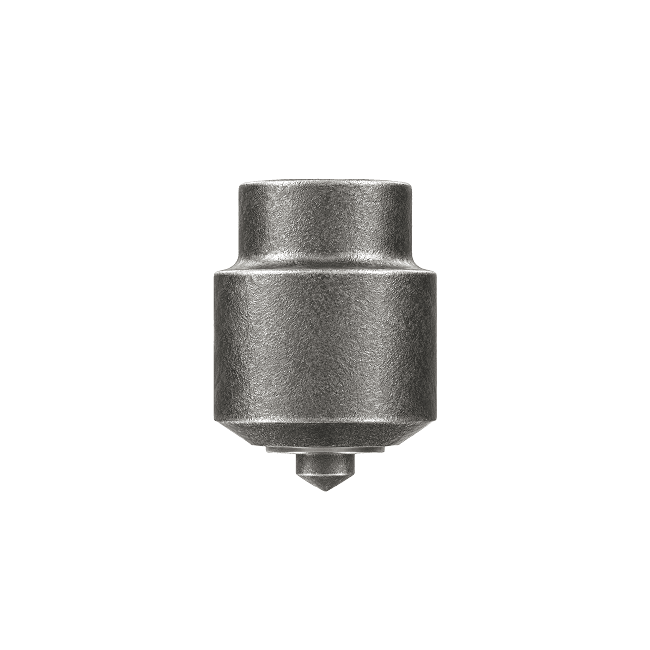

TS16A

Base diameter

16 mm (5/8")

Before weld height

19 mm (3/4")

After weld height

16–17 mm (5/8"–11/16")

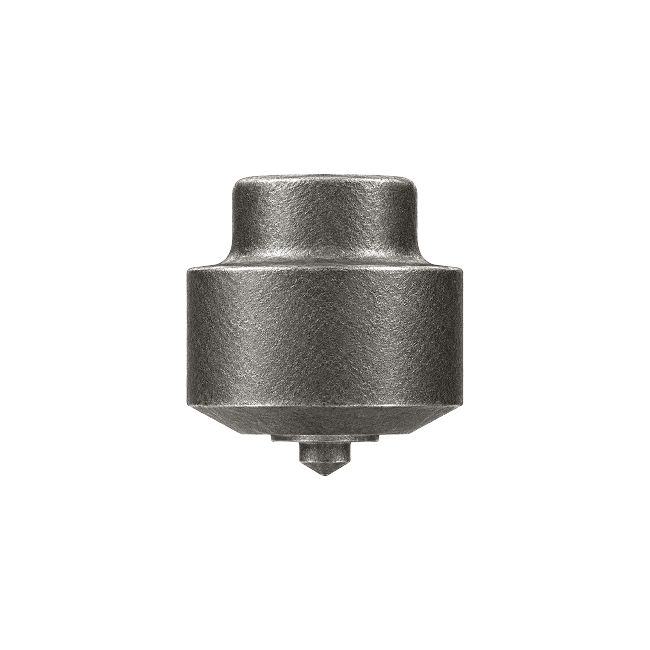

TS19A

Base diameter

19 mm (3/4")

Before weld height

18 mm (11/16")

After weld height

14–15 mm (9/16")

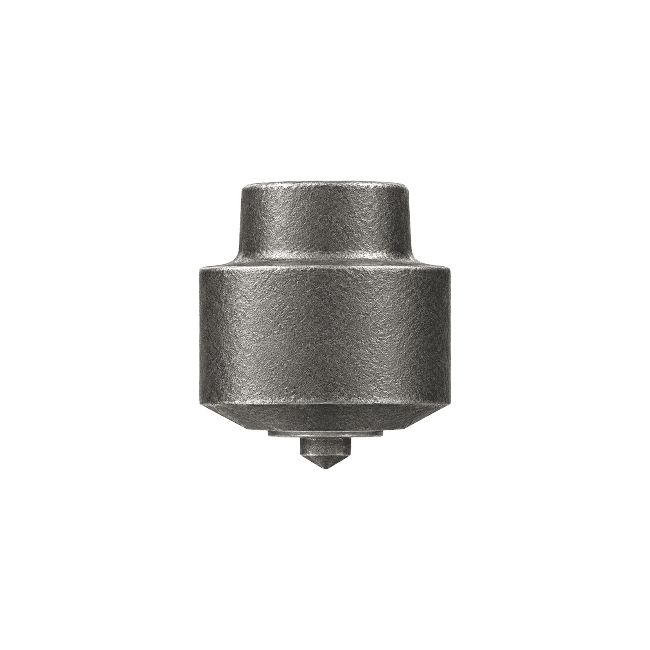

TS22A

Base diameter

22 mm (7/8")

Before weld height

19 mm (3/4")

After weld height

17–18 mm (11/16")

See TuffStudds at work

CAT 7495 bucket door fitted with TuffStudds — CAT 7495 bucket door runs 90% lighter with TuffStudds.

LeTourneau L1850 wheel loader fitted with TuffStudds — Internal gyratory wear liners featuring a TuffStudds system to maximize wear resistance.

Haul truck tray fitted with TuffStudds — TuffStudds cut 3,150 lbs of dead weight from a haul truck body over 13,500 hours, boosting payload capacity.

Gyratory crusher liner plates fitted with TuffStudds to protect against abrasion and impact resistance.

Primary gyratory crusher spider arm fitted with TuffStudds — Primary gyratory crusher spider arm protected with TuffStudds.

CAT 815 compactor caps fitted with TuffStudds — CAT 815 compactor caps with TuffStudds create a protective dead-bed layer.

Twinkle Co rotary cutter basket fitted with TuffStudds — Twinkle Co rotary cutter surpassed 1,000 hours in clay dredging with TuffStudds.

Ditch Witch cutter wheel fitted with TuffStudds — TuffStudds on a Ditch Witch cutter wheel outlast hardfacing 4x.

Cage mill rotor fitted with TuffStudds for maximum wear protection.

Debarker feed roll fitted with Spike Series TuffStudds — Spike Series TuffStudds on a debarker feed roll maintain aggressive bark grip.

Feed rollers fitted with Spike Series TuffStudds after heavy use — Spike Series TuffStudds on feed rollers after heavy use.
